Hallway System

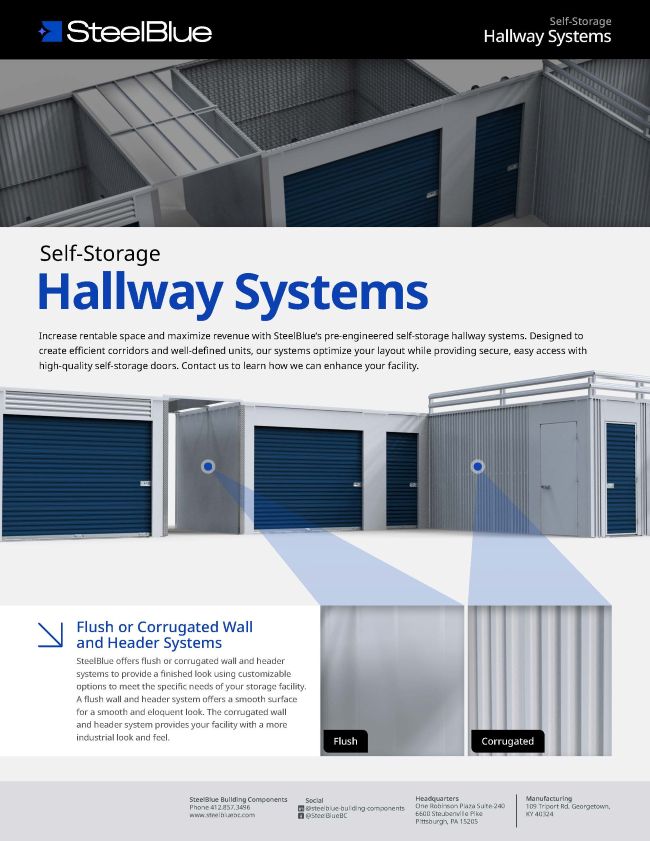

SteelBlue offers Flush or Corrugated wall and header systems to provide a finished look using customizable options to meet the specific needs of your storage facility. A Flush wall and header system provides a smooth surface for a smooth and eloquent look. The Corrugated wall and header system provides a more industrial look and feel to your facility.

Features

01
Kick Plate
Installed at the bottom of the hallway system, kick plates assist in preventing potential damage caused by any hall traffic. Kick plates help create a complete look to your hallway system and are available in 20-gauge galvanized steel and aluminum diamond plate.
02
Corner Guard
Similar to kick plate, corner guards protect the corners in the hallway. The aluminum diamond plate corner guard is available in lengths up to 10 ft.
03
Soffit
Soffit is installed at the ceiling between a hallway system to offer an attachment point for lighting. Additionally, it hides unsightly mechanical components such as HVAC and electrical.
04
Header Panel
The header panel is used in interior applications to enclose the area between the top of the door and the hallway system. This product is available in either flush or corrugated.
05
Burglar Bars
The bars above a hallway systems or unit partition are called burglar bars. Like wire mesh, these bars help secure the space above the top of the hallway system.
06
Roll-Up Door
A roll-up door is made of interlocking metal sheets designed to roll-up along a guide into a coil directly above the opening. Roll-up doors protect your belongings against unwanted entry and natural elements.
07
Unit Partition
The mid-span horizontal bracing supports increased wall strength and utilizes hem-and-channel construction to eliminate sharp edges. This durable solution combines strength with safety and visual appeal in an affordable package that accommodates unusual loads placed on walls.
08
Mesh
Wire mesh is used at the top of storage units with overhead gaps that might allow entry. The mesh provides light and airflow inside the interior hallway system while keeping the items inside the unit secure.
09
Bottom Bar
Designed to protect the door against weather as well as reduce damage and wear. SteelBlue’s bottom bars are constructed using 6063-T3 aluminum and feature a vinyl weather seal that can be changed without replacing the entire door.
10
ADA Kits
The Americans with Disabilities Act of 1990 (ADA) requires 5% of the first 200 self-storage units and 2% of the self-storage units over 200 to be accessible. SteelBlue includes a looped pull rope with all doors to comply with the ADA.
11
Roll-Up Frame
The flush roll-up frame is designed to be durable and maximize unit space.
12
Standard Stainless Steel Latch
Constructed with limited pry points and double- padlock compatibility.
13
Wall Panel
The wall panels provide the facility with a finished look and enclose the unit. These panels are available in a flush or corrugated profile.
14
Flush Swing
Typically used for mechanical rooms or storage closets for facility owners.
15
Swing Door
For smaller spaces, using a swing door may be a great option. A swing door has two hinges that allow the door to swing outward.
16
Locker Door
The locker door is half the size of the standard swing door and can be installed in stacked configurations.

Features

Kick Plate

Installed at the bottom of the hallway system, kick plates assist in preventing potential damage caused by any hall traffic. Kick plates help create a complete look to your hallway system and are available in 20-gauge galvanized steel and aluminum diamond plate.

Corner Guard

Similar to kick plate, corner guards protect the corners in the hallway. The aluminum diamond plate corner guard is available in lengths up to 10 ft.

Unit Partition

The mid-span horizontal bracing supports increased wall strength and utilizes hem-and-channel construction to eliminate sharp edges. This durable solution combines strength with safety and visual appeal in an affordable package that accommodates unusual loads placed on walls.

Bottom Bar

Designed to protect the door against weather as well as reduce damage and wear. SteelBlue’s bottom bars are constructed using 6063-T3 aluminum and feature a vinyl weather seal that can be changed without replacing the entire door.

Roll-Up Frame

The flush roll-up frame is designed to be durable and maximize unit space.

Header Panel

The header panel is used in interior and exterior applications to enclose the area between the top of the door and the hallway system. This product is available in either flush or corrugated.

Standard Stainless Steel Latch

Constructed with limited pry points and double-padlock compatibility.

ADA Kits

The Americans with Disabilities Act of 1990 (ADA) requires 5% of the first 200 self-storage units and 2% of the self-storage units over 200 to be accessible. SteelBlue includes a looped pull rope with all doors to comply with the ADA.
