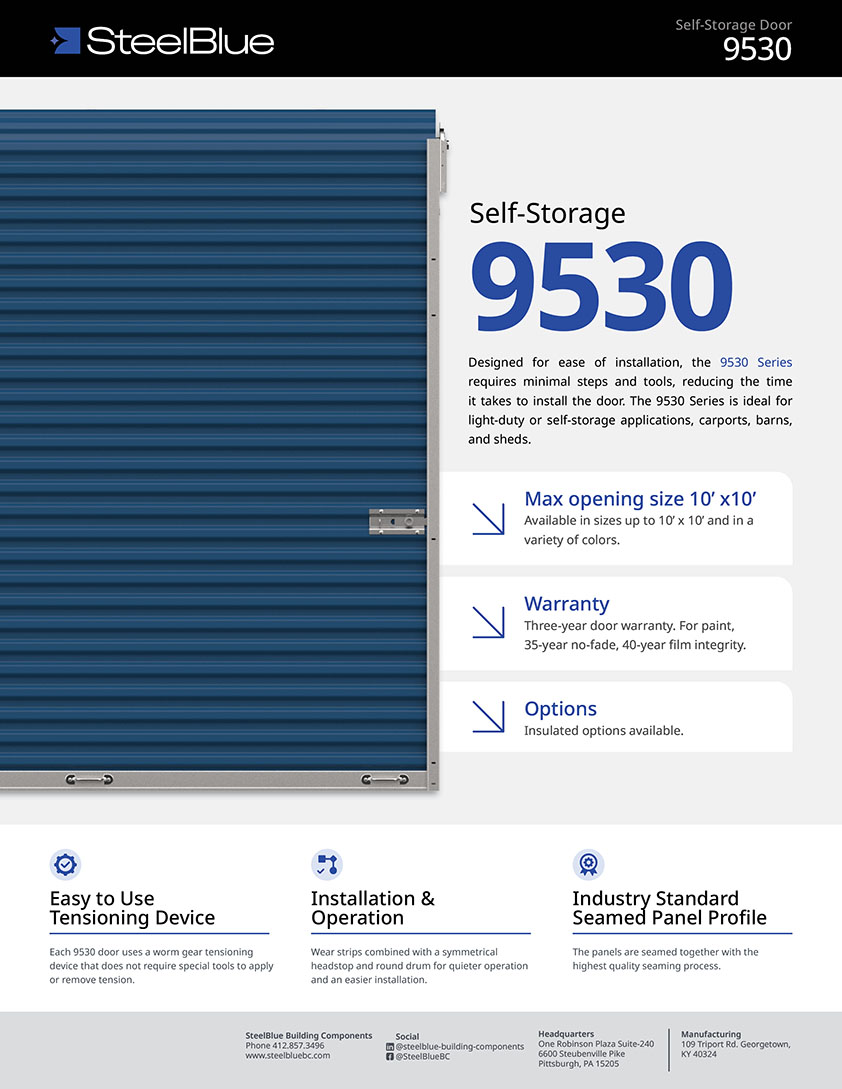

9530 Series
The 9530 Series features panels that are seamed together with the highest quality seaming process to provide you with the industry standard seamed panel profile. Each 9530 Series roll-up door has an easy-to-use tension device that doesn’t require special tools to apply or remove tension. It is designed for easy installation and operation due to its shorter guide, wear strips, symmetrical headstop, and round drum.
Color options: Siliconized Polyester
Features
Curtain
- Industry standard profile, 26-gauge, Grade 80 prepainted steel
- 5/8” ribbed corrugation
- Max opening size 10' x 10'
Bottom Bar
- 6063-T6 Aluminum
- 1-1/2 x 1-1/2 16GA. Angle with Mini Clips
- Replaceable self-adhesive astragal
Guide System
- 18-gauge galvanized steel
- Pre-punched holes for anchors, slide latch, bracket attachment and head-stop attachment
- Polyethylene guide strips provide easy, quiet operation
Hardware
- 12-gauge head stops have slotted mounting holes for proper attachment
- 16-gauge galvanized brackets
- Shielded radial bearings for smooth operation
- Worm gear tensioner easily adjustable with 7/16” socket/nut driver
- 4-bolt latch
Minimum Clearance
- For proper exterior door installation, a ½” deep rain lip must be formed in the concrete slab extending a minimum of 3 ½” from the interior face of the jamb.
